Description

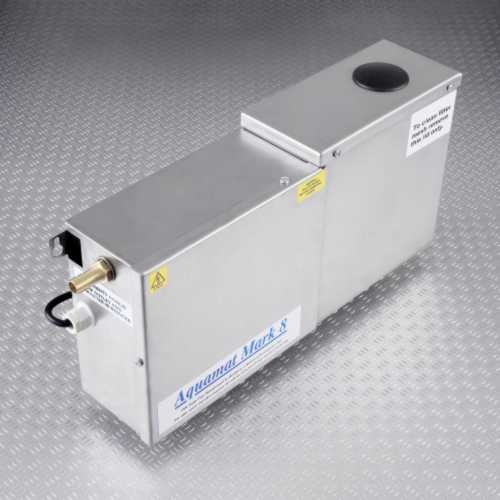

This wall mounting unit, Aquamat Mark 8 Pump Tray, is designed with Cold Room applications in mind. It uses the same key components that have made our other units so reliable over three decades.

Specification

• Part No. AM108
• Size  430mm x 215mm x 100mm
• Water Tank Capacity: 2.5 Litres
• Pump Capacity: 250 Litres per hour at 12m total head of water
• Max Total Head: 12 metres
• Pump Control: Float switch controlling a power relay.
• Inlet Connections: 1 @ 1″ (side) & 1 @ 2″ (lid)
• Outlet Connections: 12mm for flexible hose.
• Non-return valve: Fitted within unit
• Electrical Supply: 230V AC, fused 5 Amp
