Description

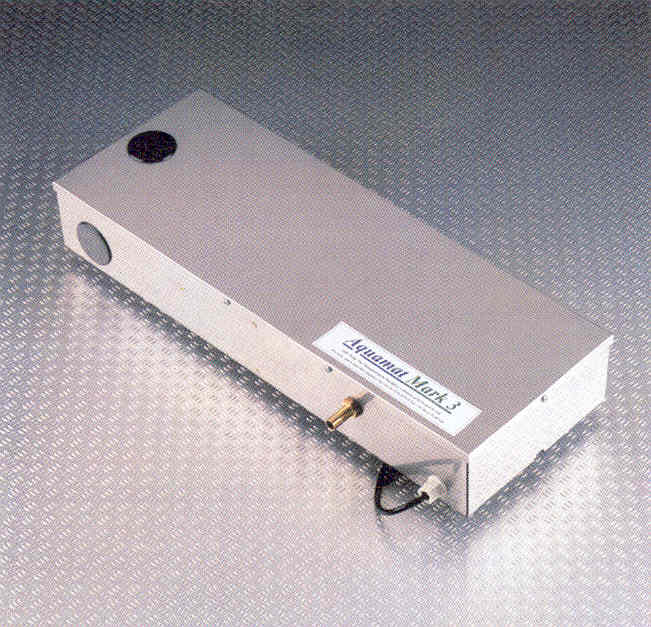

This 230V AC unit, the Aquamat Mark 3A, is our most popular unit with a height of only 80mm it will fit under most retail cabinets and can cope with the condensate produced from up to 4 x 12ft. display cabinets.

Specification

• Part No. AM103 (Part No. AM103A for High Level Alarm option.)
• Size  620mm x 235mm x 80mm
• Water Tank Capacity: 6 Litres
• Pump Capacity: 250 Litres per hour at 12m total head of water
• Max Total Head: 12 metres
• Pump Control: Float switch controlling a power relay.
• Inlet Connections: 2 @ 1″ (end & side) & 1 @ 2″ (lid & side)
• Outlet Connections: 12mm for flexible hose.
• Non-return valve: Fitted within unit
• Electrical Supply: 230V AC, fused 5 Amp

240v Pump Tray Size Guide
