Description

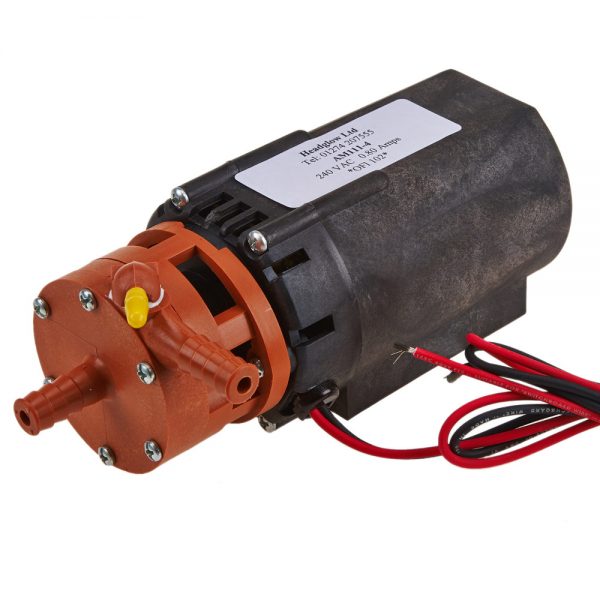

240 Volt Pump Motor

These compact high speed centrifugal pumps, the 240 volt pump motor, are suited for a variety of applications including condensate removal.
They are particularly well suited for handling soap solutions in extraction type carpet cleaning equipment.

The design’s symmetry provides a wide range of configuration possibilities allowing ready customization of discharge port position and optional air vent orientation relative to the motor base.

Pump and Motor Features:

• Chemical Resistant construction
  • Body and Adapter made of non-metallic glass reinforced Nylon 6/6
  • Impeller made of non-metallic glass reinforced PPS
• Mechanical Seal – carbon / ceramic faces, silicone rubber elastomer
  • Tolerates intermittent dry running
• Barbed – Hose Connections
• Static Buna O-Ring body/adapter seal
• Intergrated Air Vent- prevents loss of prime
• Compact and Lightweight
• Installation/Mounting Versatility – port orientation
• Universal – Open Drip Proof Motors with internal fan cooling, UL, listed
  • No 18 Wire leads – 25″ long
  • Low amperage
  • 120VAC, 240VAC (Optional: double insulation) and 12VDC versions.

Our part number for this product is AM111.
